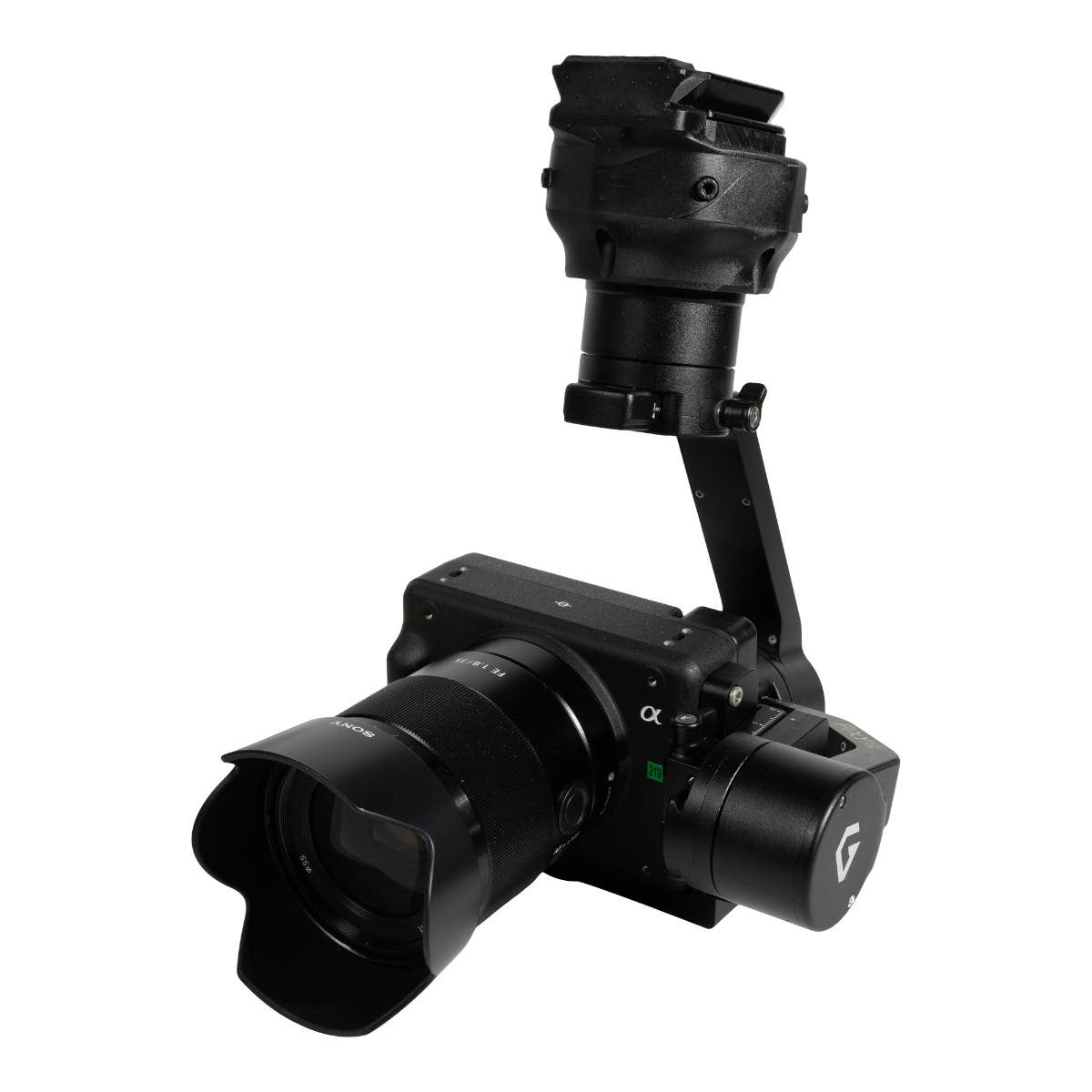

Inspired Flight Sony ILX-LR1 Payload for IF800: Full-frame aerial imaging optimized for medium-lift operations

The Inspired Flight Sony ILX-LR1 Payload for IF800 integrates Sony’s industrial full-frame camera into a lightweight aerial payload designed for medium-lift survey and inspection missions. Built around a 61MP back-illuminated Exmor R CMOS sensor and powered by the BIONZ XR processor, the ILX-LR1 delivers exceptional still image detail and UHD 4K video performance.

Its compact, viewfinder-less body, interchangeable Sony E-mount lens support, and external DC power input make it well suited for mapping, inspection, and photogrammetry workflows flown on the IF800 platform.

Core features

• 61MP full-frame sensor captures ultra-detailed aerial still imagery
• BIONZ XR processor delivers low-noise performance and wide dynamic range
• Sony E-mount supports interchangeable professional full-frame lenses
• UHD 4K video recording supports detailed inspection documentation workflows
• Mechanical and electronic shutters enable precise exposure control
• ISO range from 100–32000 adapts to varying daylight conditions
• Lightweight 243 g payload preserves IF800 flight efficiency
• External DC power input supports extended mission durations

Imaging performance for professional aerial data capture

At the core of the ILX-LR1 is a full-frame Exmor R CMOS sensor capable of resolving fine surface detail required for photogrammetry and asset inspection. The BIONZ XR processor enables natural color reproduction, low-noise output, and wide dynamic range across an ISO range of 100 to 32000.

Mechanical and electronic shutter options support accurate exposure during motion, while 4:3 still image capture aligns with professional mapping standards. Interchangeable E-mount lenses allow operators to select focal lengths matched to altitude and ground sampling requirements.

Operational advantages on the IF800 platform

Weighing approximately 243 g (8.6 oz), the ILX-LR1 complements the IF800 without significantly impacting payload margins or endurance. Internal UHD 4K recording up to 59.94 fps supports detailed visual documentation, while micro-HDMI output enables real-time monitoring or external recording.

Sony’s Camera Remote SDK allows full remote control of camera settings, shutter, and live view, enabling synchronized aerial workflows. External DC power eliminates battery changes, improving efficiency during extended mapping and inspection missions.

Platform compatibility

• Designed for Inspired Flight IF800 aircraft integration
• Sony E-mount enables flexible lens configuration options
• micro-HDMI output supports external monitoring or recording
• USB-C interface supports camera control and data transfer
• UHS-II SD card slot supports high-speed onboard storage

Professional application scenarios

• Aerial surveying: capture high-resolution imagery for mapping analysis
• Infrastructure inspection: document assets with fine surface detail
• Construction monitoring: track site progress using repeatable datasets
• Photogrammetry missions: generate accurate 3D reconstruction models
• Environmental assessment: collect imagery across defined survey zones
• Asset documentation: maintain long-term visual inspection records
• Research operations: acquire controlled datasets for analytical workflows
• Industrial investigation: identify surface defects and structural wear

Designed for enterprise integration

The ILX-LR1 Payload is engineered for repeatable operation in professional aerial environments, combining robust imaging performance with standardized interfaces. SDK-based control, external power input, and streamlined integration support scalable workflows across multiple missions. When paired with the IF800, the payload delivers dependable full-frame imaging for enterprise data collection.

The Inspired Flight Sony ILX-LR1 Payload for IF800 delivers uncompromising image quality in a lightweight aerial form factor. It is built for professionals who require accurate, repeatable results from a medium-lift platform.

Available now from DSLRPros. Configure your IF800 with proven full-frame aerial imaging capability.
