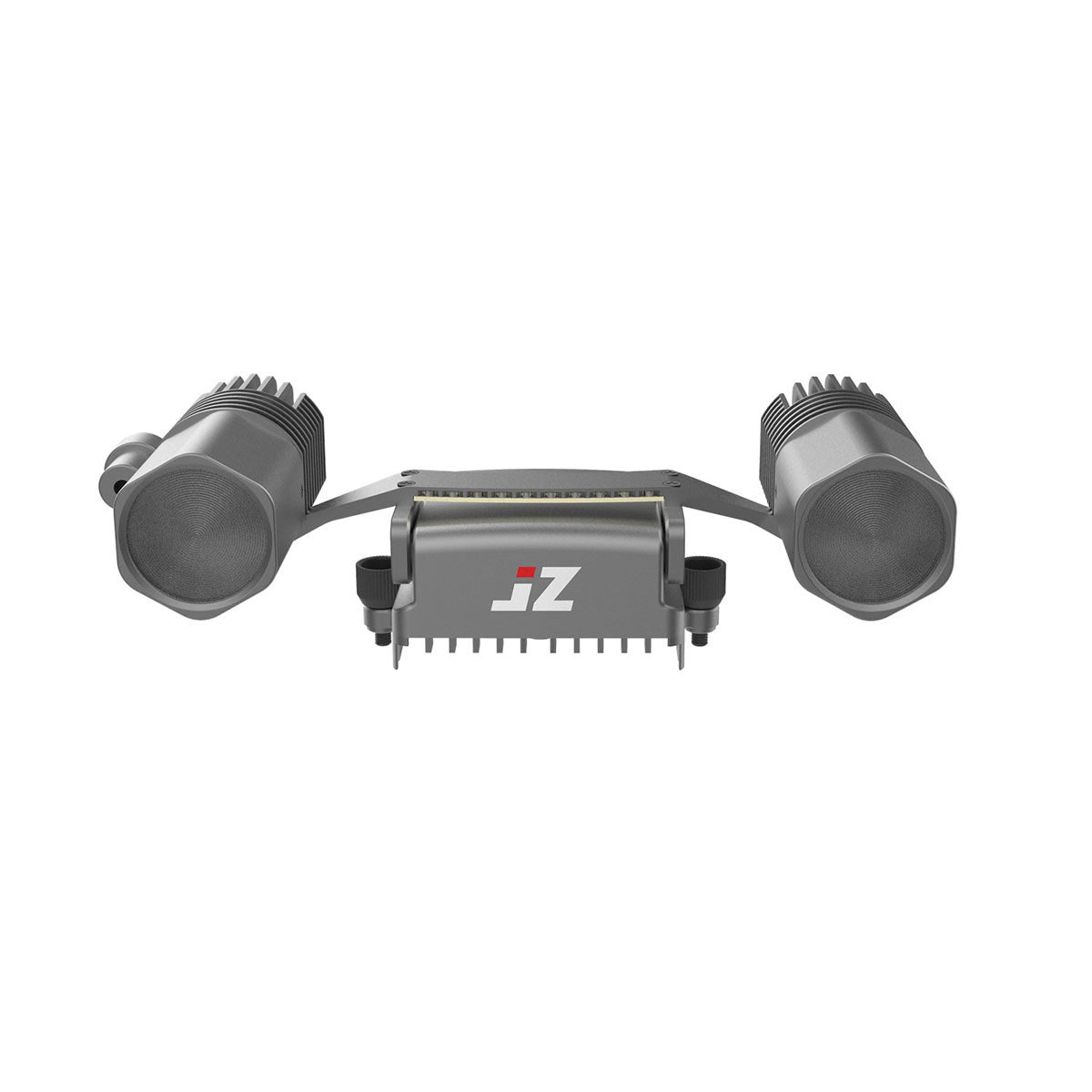

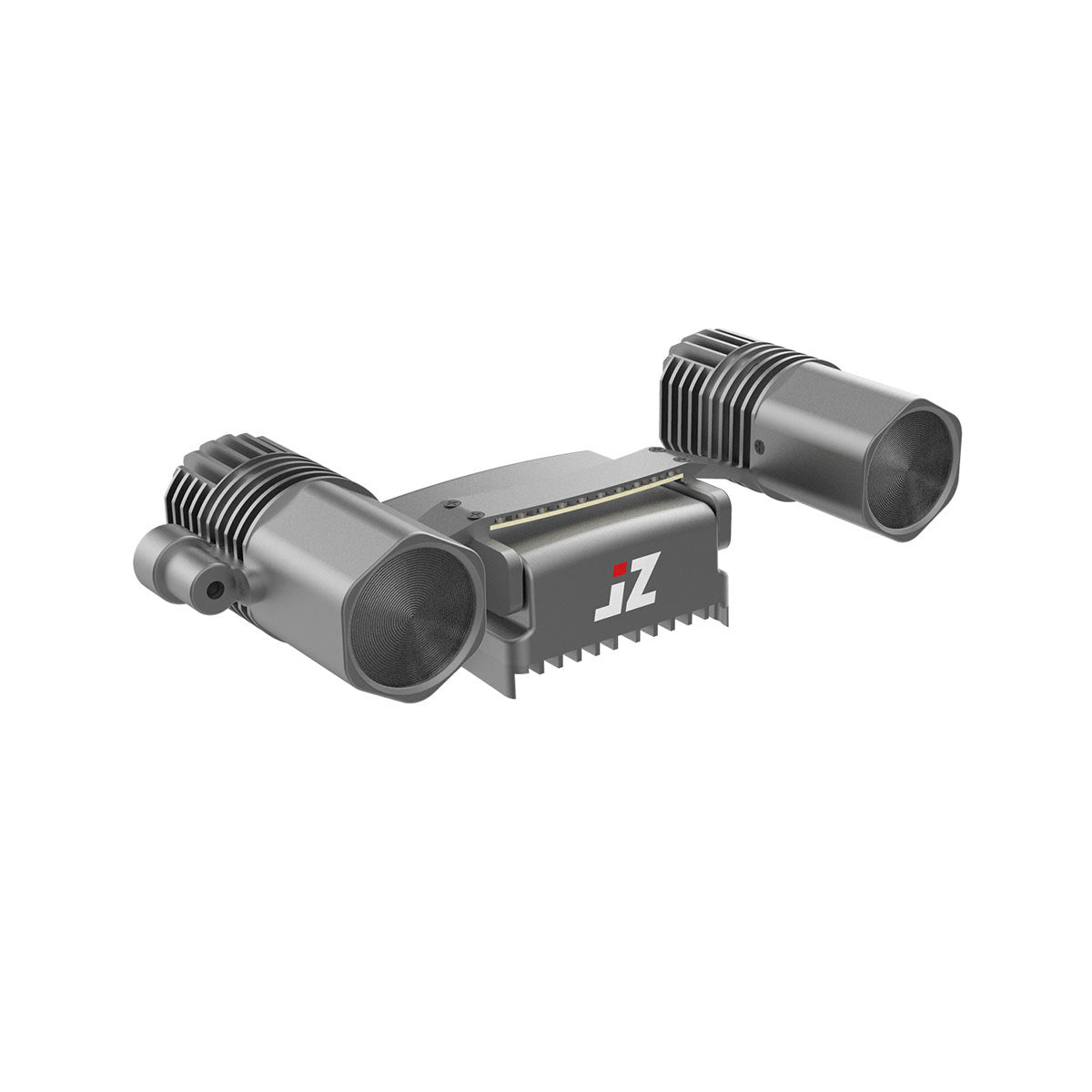

JZ Drones T30 V2 Matrix Lamp for DJI Matrice 4T/4E: Focused Aerial Illumination System for Low-Light Operations

The JZ Drones T30 V2 Matrix Lamp is a DJI SDK-compatible illumination payload designed for low-light aerial operations using DJI Matrice 4E and Matrice 4T platforms. It delivers 40 W of focused lighting through a 14° beam, providing up to 24 lux at 50 meters (164.04 ft) for effective scene illumination during night missions.

The system integrates with DJI Pilot 2 for real-time brightness control, flash modes, and gimbal adjustment. Equipped with a single-axis stabilized gimbal that links with the camera, it ensures aligned and stable lighting direction during flight, supporting search, inspection, and emergency response operations.

Key Features and Benefits

• 40 W output: delivers high-intensity illumination for low-light aerial operations
• 14° beam angle: provides concentrated lighting for targeted area illumination
• 24 lux at 50 m: ensures strong visibility for close-range operations
• 5 lux at 100 m: maintains usable illumination for mid-range mission tasks
• 2.5 lux at 150 m: supports extended-range visibility during aerial operations
• Single-axis gimbal: stabilizes lighting and links with camera movement
• Gimbal control: supports 0° to -90° adjustable lighting direction range
• Pilot 2 control: enables brightness adjustment and remote lighting operation
• Flash mode: supports burst brightness and adjustable flash frequency

Applications and Use Cases

• Search operations: illuminates terrain for locating individuals in low visibility conditions
• Public safety: provides aerial lighting for nighttime emergency response operations
• Inspection work: enhances visibility during infrastructure inspection in dark environments
• Fire response: supports scene visibility during nighttime firefighting coordination efforts
• Security patrol: enables wide-area illumination for surveillance and perimeter monitoring
• Disaster response: improves visibility during nighttime rescue and recovery operations

The T30 V2 provides a focused and stable aerial lighting solution for operations where visibility is critical. Its high-output beam, gimbal-linked stabilization, and real-time control enable consistent illumination across varying mission distances.

With DSLRPros, you gain access to field-proven UAV payloads backed by real operational expertise. Every system is validated for performance and integration—order the T30 V2 Matrix Lamp from DSLRPros today.
